Promivac Engineers

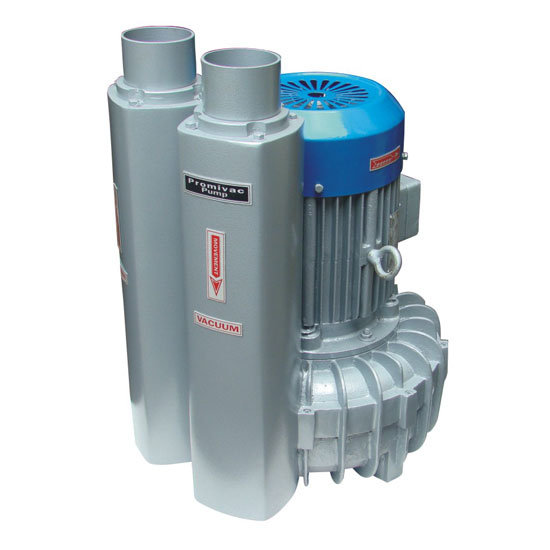

A maintenance free, noise less blower because of no friction, no vibration & needs no lubrication at all. Consequently, completely wear & tear free.

Based on revolutionary innovation, It is comparatively quieter, lighter and practically maintenance & oil free substitute of the noisy, bulky, oily and monstrous type of conventional air blowers, for the applications where large and forceful suction and pressure capabilities are required in agitation of chemicals.

Since there is absolutely no friction between any two parts of the blower, hence no lubrication is required and consequently the pressurized air or vacuum generated by the machine is 100% oil free.

Since these blowers are compact, maintenance free and need no oiling at all, these are most suited for mounting inside the machines meant for electro plating, dust collecting, printing , paper handling, Vacuum packaging, pneumatic conveying and hence are quite popular with OEM.

Available in Single, Double & Multi bladed turbine, or side channeled impeller versions, suiting various applications dependent upon High Pressure Low displacement or Low Pressure High Displacement requirements.

Applications

Aeration, Bottle Drying, Agitation, Air Bearing, Oil Burners, Dryers, Jacuzzi, Medical Bath Tubs, Hopper Car, Laminating Press, Vacuum Conveying, Vacuum Desolders, Blood Taking Equipment, Bottle / Liquid Filling Stations, Vacuum Packaging, Industrial Vacuum Systems, Dust / Trim Collection, Vacuum Lifting & Forming, Feeding, China Clay Crockery Casting, Air Pollution Monitoring, High Speed Labelling Machines, Paper Counters, Fume / Smoke Extraction Units, Garment Vacuum Tables etc.

Specifications

: : High Pressure - Low Displacement : :
Model Capacity m3/hr Pressure mbar Vacuum mbar Motor Weight in Kgs.
hp kw
PTB1-50 40 140 120 0.5 0.37 17
PTB1-100 100 230 200 1 0.75 25
PTB1-200 150 275 250 2 1.5 35
PTB1-250 200 330 320 3 2.2 45
PTB1-300 250 380 340 5 3.5 55
PTB1-350 310 450 400 7.5 5.57 65
PTB1-400 400 525 475 10 7.5 90
PTB1-450 525 550 525 15 11.25 120
PTB1-500 600 575 550 20 14.8 135
: : Low Pressure - High Displacement : :
Model Capacity m3/hr Pressure mbar Vacuum mbar Motor Weight in Kgs.
hp kw
PTB2-50 85 85 75 0.5 0.37 17
PTB2-100 200 140 125 1 0.75 25
PTB2-200 300 175 150 2 1.5 35
PTB2-250 400 200 180 3 2.2 45
PTB2-300 525 230 200 5 3.5 55
PTB2-350 625 260 250 7.5 5.57 65
PTB2-400 850 350 300 10 7.5 90
PTB2-450 1100 400 350 15 11.25 120
PTB2-500 1250 475 380 20 14.8 135
