Promivac Engineers

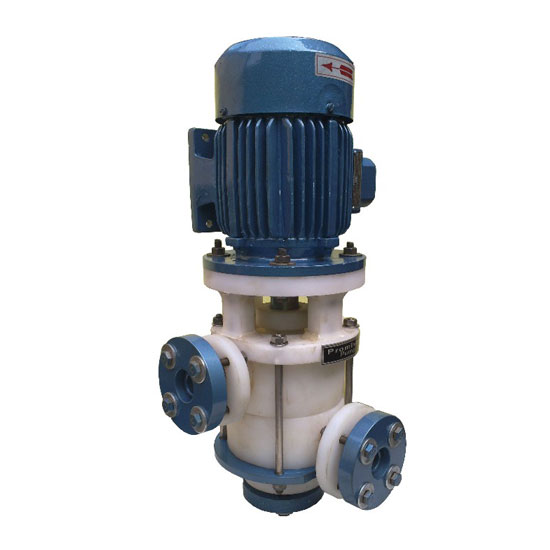

These Non-clog Type both Seal & Glandless Vertical Pumps fabricated from chemically inert polypropylene help in effective handling of host of chemicals. It will prove a panacea for host of transferring problems of hazardous liquids like HCl, H2HSO4, HNO3, H3PO4, HF, Sea Water, Caustic Slurries & Industrial Waste and hence is a boon for pharmaceutical, chemical processing, electroplating and effluent handling industries.

Its non-clogging features combined with ability to handle liquids containing small solids have made it quite popular with the electroplating units. Uniform consistency of highly abrasive chemicals is achieved and maintained through continuous vigorous stirring done by this unique pump. Consequently this adds to shine and gloss of the end product. Besides, it has also found favour with TV Tube manufacturing, Glass etching, refrigeration, de-scaling and photo film processing units as well.

The standard model pumps are generally available off the shelf, but the extended shaft models and tank mounted pumps for ink, paint & other chemical circulation purposes etc. can also be made available as per given parameters, on short delivery basis.

Specifications

Model Delivery
Size in mm
Impeller
Size in mm
Motor HP
2800 rpm
Head in Meters / Capacity in LPM
PVPP-50 20 75 0.5 5 / 0 4 / 20 3 / 25 2 / 30 - / -
PVPP-100 25 100 1.0 12 / 0 11 / 30 10 / 50 8 / 75 4 / 125
PVPP-200 32 125 2.0 20 / 0 18 / 50 16 / 75 14 / 100 10 / 150
PVPP-300 40 140 3.0 25 / 0 22 / 50 20 / 75 18 / 150 10 / 250
PVPP-500 40 160 5.0 33 / 0 30 / 75 25 / 150 20 / 200 10 / 300
