Promivac Engineers

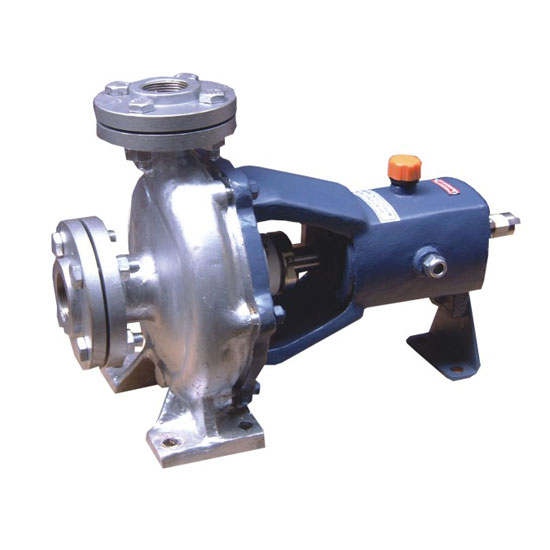

High Quality SS 304/316 material of construction ensures effective resistance to corrosive liquids & slurries and hence pumps made from this metal, undisputedly stands as an ultimate choice of every discerning user to resist the violent attacks of such hot and cold corrosive mediums in their process industries.

Hot and Cold Chemical Process Service, Thermic Fluids, Chemicals, Petrochemicals, Sugar, Textiles, Effluent, Pharmaceuticals, Labs and Pilot Plants etc.

Specifications

Model No. Suc. X Del. mm Recomended
kw / hp
Speed
in rpm
Head in Meters
2 5 10 15 20 25 30 35 40 45 50 LPM
PCS-50 20 X 20 0.37 / 0.5 2900 125 100 70 50 00 - - - - - -
PCS-100 25 X 25 0.75 / 1 2900 150 125 110 70 00 - - - - - -
PCS-200 40 X 32 1.50 / 2 2900 - 290 265 230 180 145 50 00 - - -
PCS-300 40 X 32 2.20 / 3 2900 - 320 300 280 240 205 156 100 00 - -
PCS-500 50 X 40 3.70 / 5 2900 - 425 400 375 340 300 250 210 150 75 00
PCS-750 65 X 50 5.60 / 7.5 2900 - 760 710 650 525 470 340 125 00 - -
PCS-1000 65 X 50 7.5 / 10 2900 - 810 780 750 700 650 575 470 350 200 00
PCS-300 L 40 X 32 0.75 / 1 1440 230 210 140 00 - - - - - - -
PCS-500 L 50 X 40 1.50 / 2 1440 470 430 300 80 00 - - - - - -
