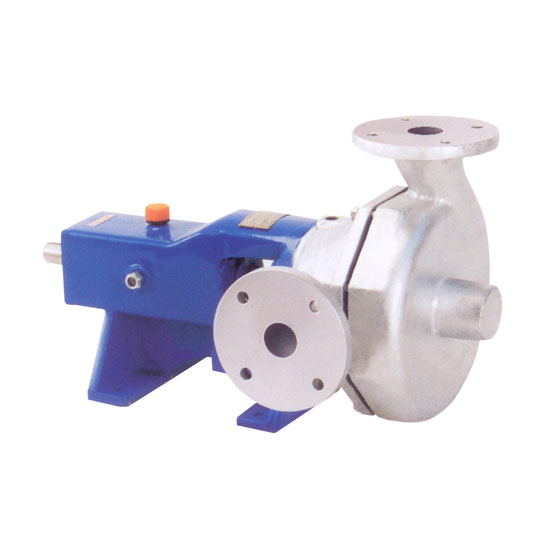

These Filter Press Pumps are Single Stage, Side Suction Type, Horizontal Mounting having Semi-Open Type Non-clogging Impeller and are available in various capacities and materials of construction like CI, SS-304, SS-316, SS-316 L, Alloy 20, Hastalloy etc.
Specially designed and fabricated to satisfy the ever increasing demand of Effluent Treatment Plants, Filter Press Feeders, Slurry Transfer, Ceramic, Paper & Pulp, Sugar Industries, Scrubbing and Handling of Dyes & Intermediates.
Specifications
| Model No. | Size in mm | Head in mtrs. | hp | rpm | |||||||||||||||||||||||||
| 2 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 15 | 17 | 18 | 20 | 21 | 24 | 25 | 30 | 32 | 37 | 40 | 42 | 45 | 48 | 55 | 60 | 70 | 85 | ||||
| Capacity in lpm | |||||||||||||||||||||||||||||
| PFPP-40S | 40 X 40 | 260 | 244 | 00 | 2 | 2880 | |||||||||||||||||||||||
| PFPP-40B | 40 X 40 | 355 | 346 | 230 | 196 | 225 | 00 | 3 | 2880 | ||||||||||||||||||||
| PFPP-50S | 50 X50 | 540 | 328 | 522 | 265 | 505 | 458 | 110 | 00 | 5 | 2880 | ||||||||||||||||||
| PFPP-50B | 50 X50 | 555 | 544 | 517 | 460 | 300 | 00 | 7.5 | 2880 | ||||||||||||||||||||
| PFPP-65S | 65 X65 | 935 | 930 | 882 | 830 | 730 | 576 | 00 | 10 | 2880 | |||||||||||||||||||
| PFPP-65B | 65 X65 | 990 | 982 | 930 | 882 | 785 | 618 | 00 | 12.5 | 2880 | |||||||||||||||||||
| PFPP-65-50S | 65 X 50 | 1224 | 1221 | 1215 | 1164 | 864 | 492 | 25 | 2880 | ||||||||||||||||||||
| PFPP-65-50B | 65 X 50 | 1290 | 1282 | 1275 | 1260 | 1197 | 1135 | 756 | 40 | 2880 | |||||||||||||||||||
| PFPP-50L | 50 X 50 | 425 | 370 | 322 | 235 | 00 | 2 | 1440 | |||||||||||||||||||||
| PFPP-65L | 65 X 65 | 580 | 535 | 455 | 140 | 00 | 3 | 1440 | |||||||||||||||||||||
| PFPP-65-50L | 65 X 50 | 855 | 823 | 712 | 609 | 493 | 263 | 00 | 5 | 1440 | |||||||||||||||||||
| PFPP-65LS | 65 X 65 | 937 | 887 | 810 | 535 | 00 | 10 | 1440 | |||||||||||||||||||||
| PFPP-65LB | 65 X 65 | 967 | 937 | 882 | 833 | 545 | 00 | 15 | 1440 | ||||||||||||||||||||
